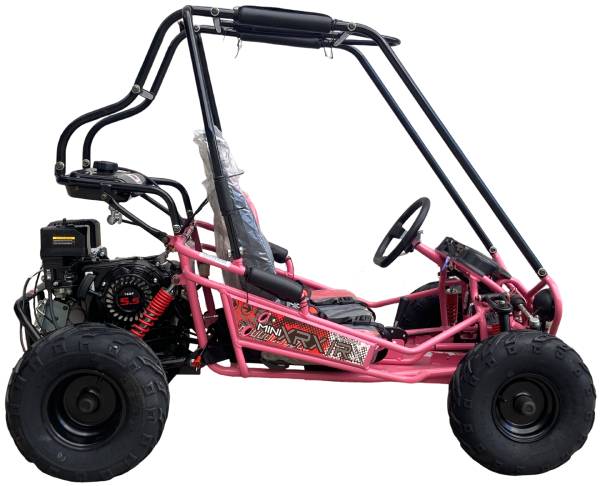

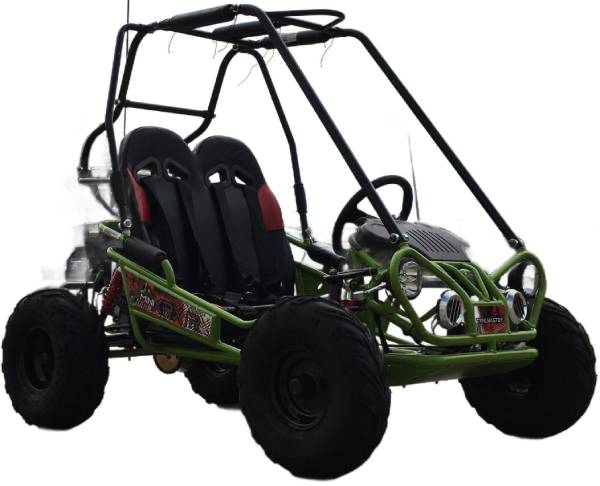

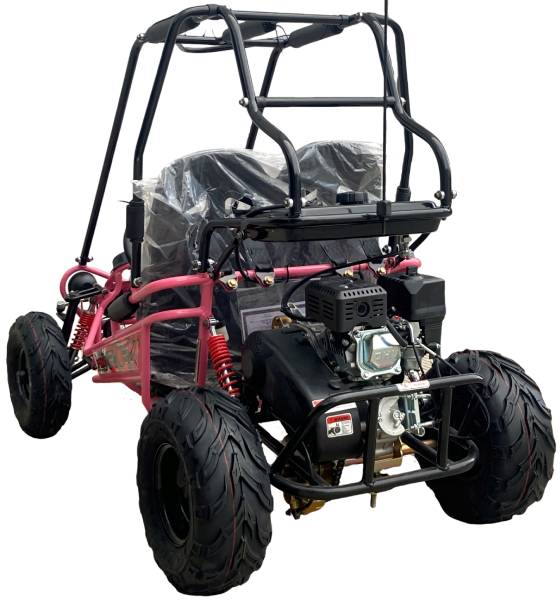

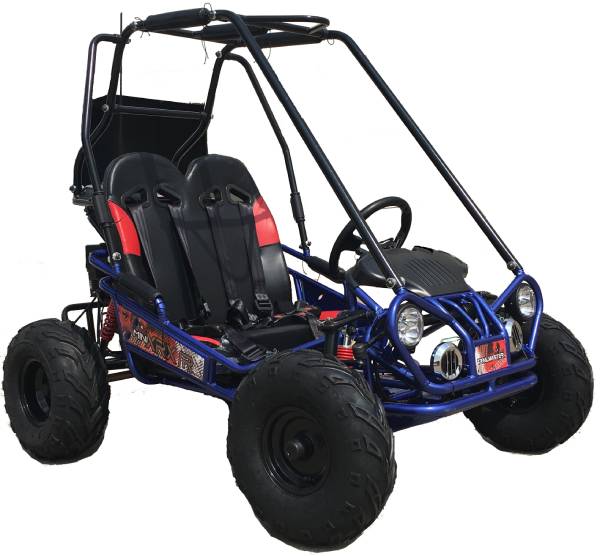

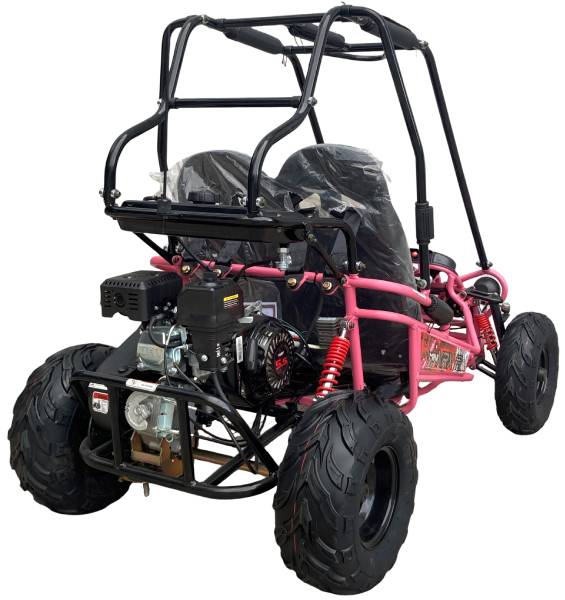

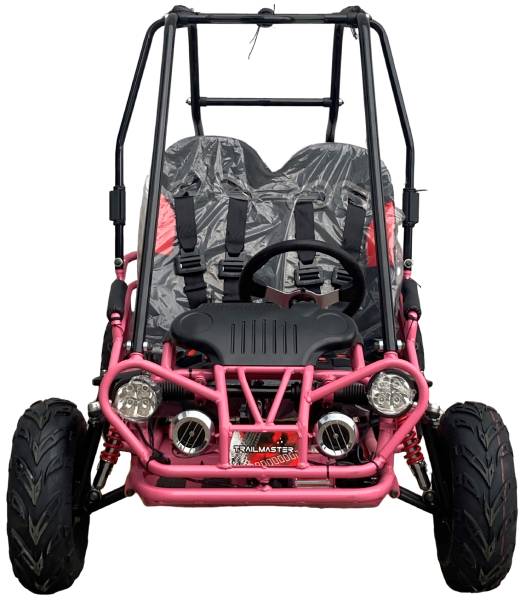

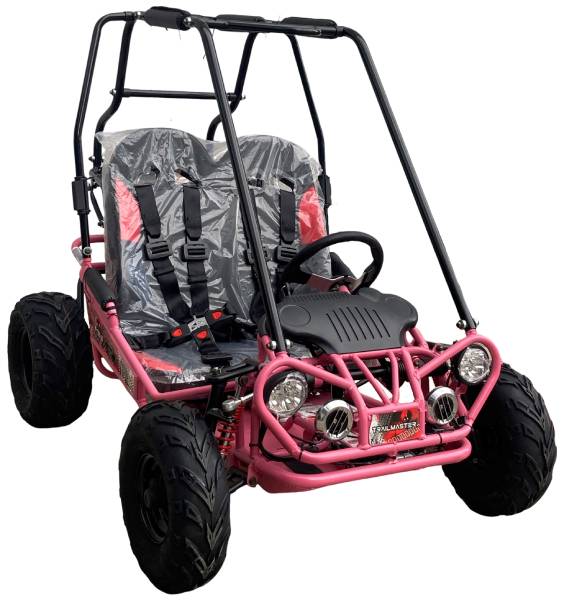

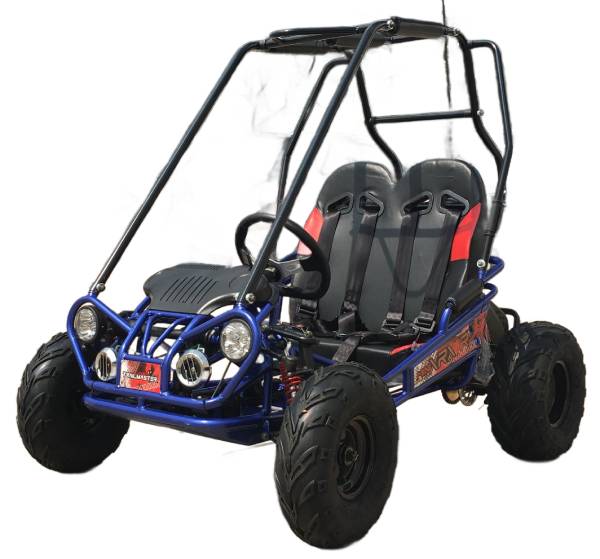

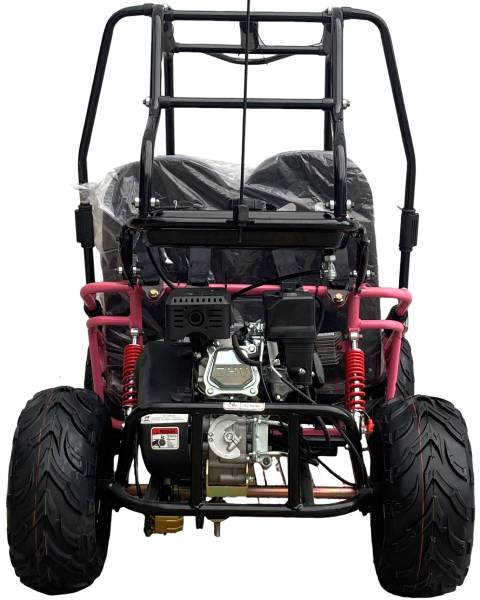

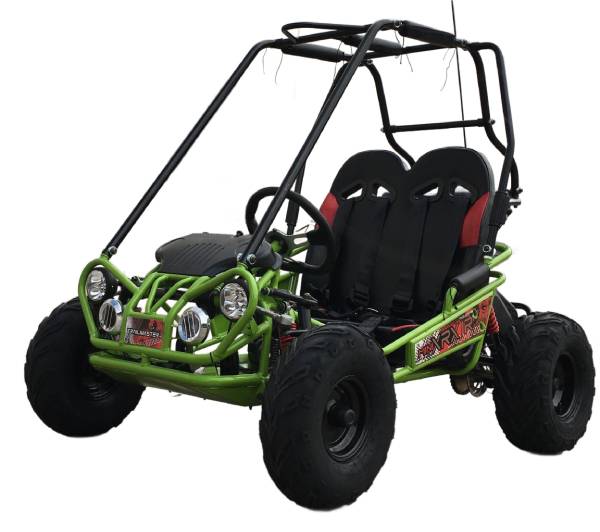

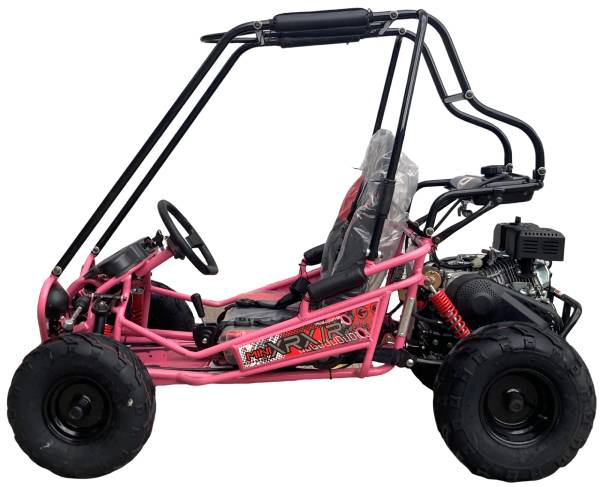

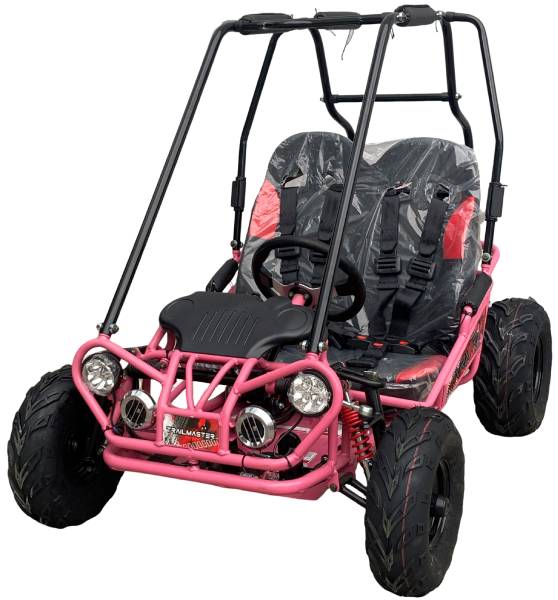

MINI XRX/R+
Engine Information
Engine type: 4-stroke, single cylinder, air cooled
Displacement: 212cc
Max HP: 7hp/3600rpm
Max torque: 12.5N·m/2500 r/min
Bore x stroke: ø70x55
Max speed: 15 mph
Climbing ability: 12 degrees
Ignition: C.D.I
Starting system: Electric Start with Pull Start Backup
Battery: 12V 9Ah
Carburetor brand: JF (RX)
Engine oil: SAE 15W-40
General Information
Clutch: Automatic/CVT w/Reverse
Driveline / Driving wheel: Chain / Dual wheel drive
Suspension, F / R: Dual A-arm / Double Oil Damped Shock
Brakes, F / R: No / Disc
Tires, F / R: 145X70-6 / 16 X8-7
Fuel capacity: 1.2 gal
Weight, G.W. / N.W.: 280 / 232 lbs
Max load: 300 lbs
Dimension Information
OA L x W x H: 58.7x38.2x48.8 inches
Height to seat: 13.6 inches
Min ground clearance: 4.02 inches
Pedal to seat back: 30” to 35”; Pedal can also adjusted to 3” or 6” shorter.
Main Features: Fully automatic with Reverse, Live Axle, Two-wheel Drive, Electric Start w/Pull Start Back Up, LED Headlight, Remote Start/Kill, Adjustable Sports Seat, Adjustable Pedal, Five Point Safety Seatbelt, Speed Governor, Horn, Age group: 4 to 12 yrs.
Configurations And Specifications Subject To Change Without Notice.
