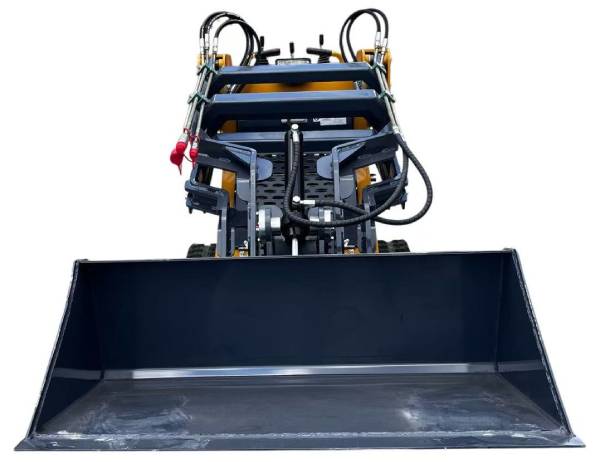

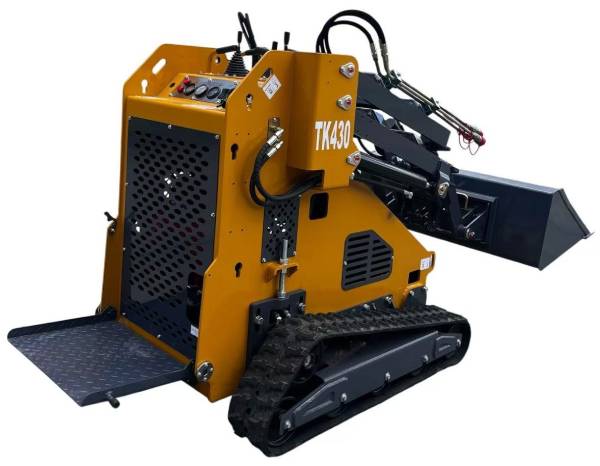

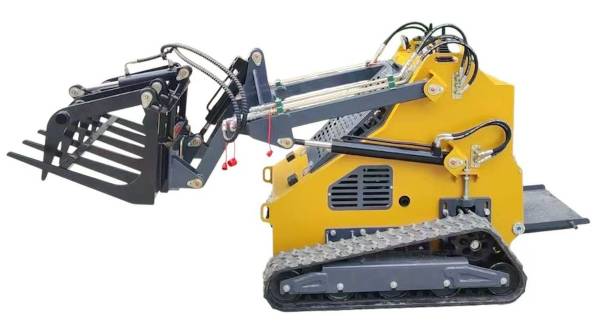

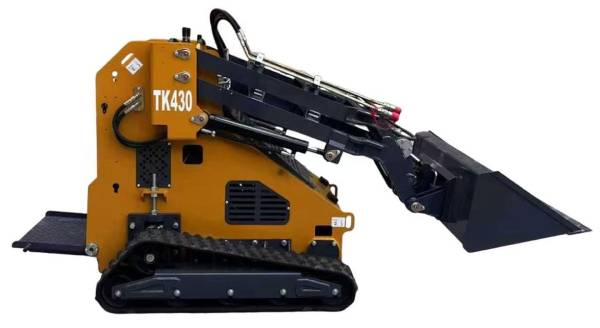

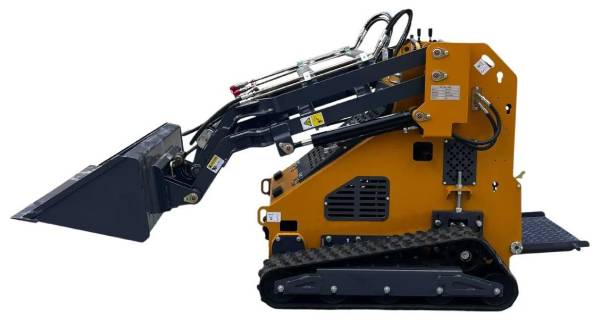

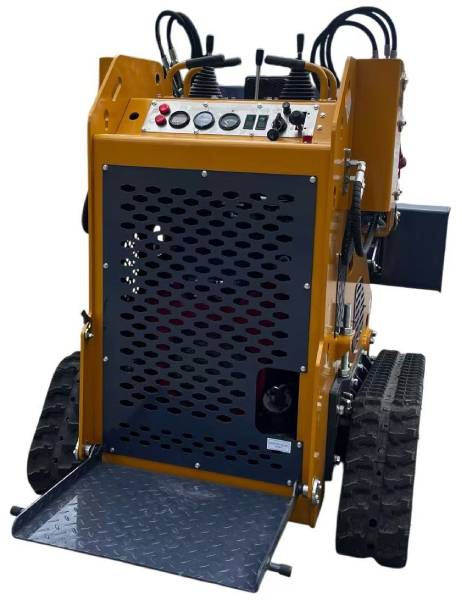

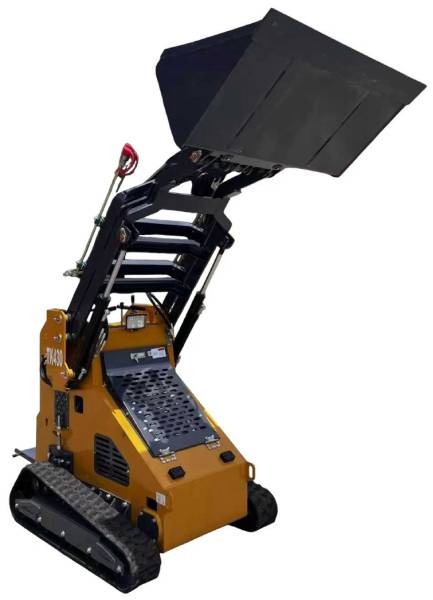

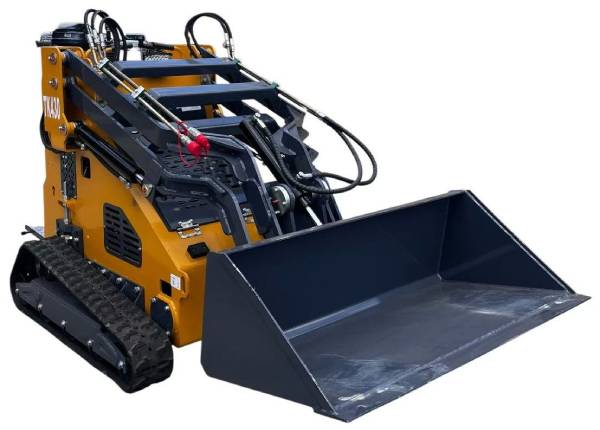

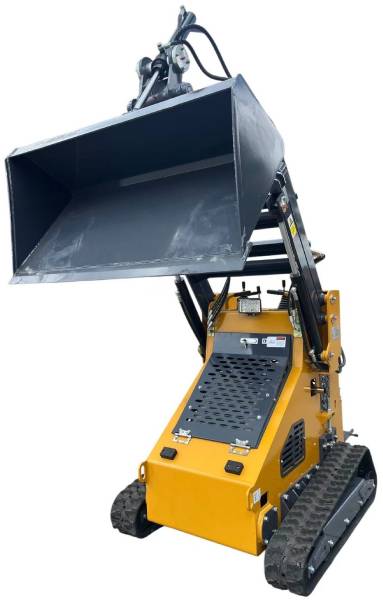

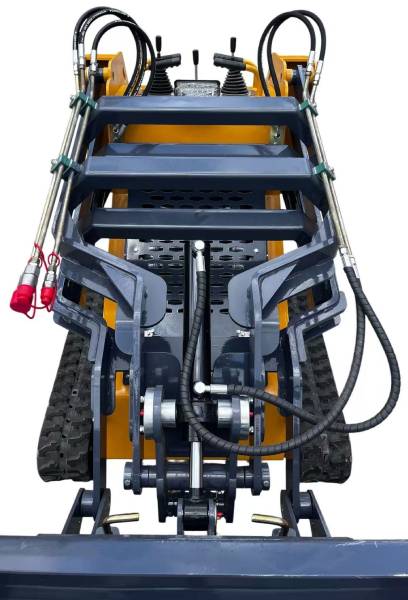

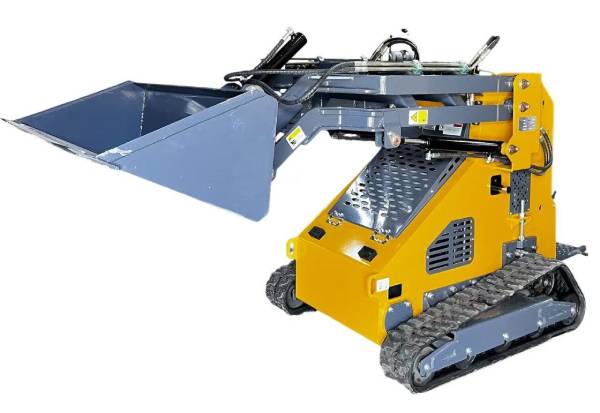

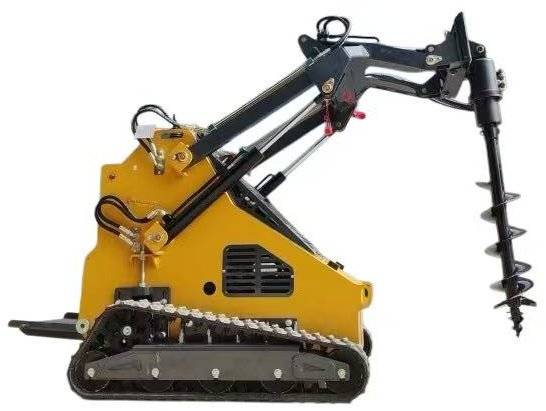

430 Track skid steer loader

Engine:

Rated power (HP): Rato739

Rated speed (rpm): 23HP/3600

Noise (Db): ≤95

Fuel tank capacity (L): 30 L

Hydraulic oil tank capacity (L): 20 L

Hydraulic system:

System pressure (Mpa): 25MPa/250bar/3626psi

Standard flow (L/Min): 33L/min

Travel pump flow (L/Min): 75L/min

Supply pump flow (L/Min): 10L/min

Working system (L/Min): 44L/min

Machine size:

Overall height: 54”, Overall width: 48”, Length without bucket: 80”/Within Bucket:103”

Working Parameters:

Loading capacity: 948LBS

Climbing angle: 20°

Bucket volume: 0.17 m3

Track width: 7.1”

Maximum lifting force: 948LBS

Net weight: 2205LBS

Speed: 0-5.5 Km/h

Operating weight: 316LBS

Engine options: Honda GX690

Emission standards: EPA

Horsepower and speed: 23HP/3600

Item:

Maximum working height: 91”

Maximum pin height: 83”

Maximum unloading height: 57”/75”

Highest point unloading distance: 32”

Bucket swing angle: 55°

Bucket unloading angle: 40°

Departure angle: 20°

Ground clearance: 4”

Wheelbase: 34”

Chassis width: 44”

Bucket width: 47”
