Model | OKAI Ranger (EB50) | ||
Number | ITEM | ||
1 | Vehicle parameters | Expansion: LxWxH | 1925*710*1104mm(75.79*27.95*43.46inch) |
2 | Frame Size | 26" | |
3 | N.W. | 38kg(83.78 lbs) | |
4 | Max Speed | 20mph. Top speed of 28 mph is available through the OKAI Global app when it is updated and announced. | |
5 | Range with throttle | 30miles | |
6 | Range with pedal assist | 45miles | |
7 | Max gradient | / | |
8 | Adapted terrain | Flat/Mountain land | |
9 | Operating temperature | 0~40℃ | |
10 | Waterproof grade | IPX5 | |
11 | Charging time | 2.8A<6H | |
12 | Battery Parameter | Rated Voltage | 48V |
13 | Rated Capacity | 14.7AH | |
14 | Battery (cell) Qty | 39Pcs | |
15 | Motor Parameter | Motor size | / |
16 | Max torque | 85N.m | |
17 | Rated Voltage | 48V | |
18 | Rated power | 750W | |
19 | Max power | 1000W | |
20 | Motor control mode | Brushless gear reduction motor | |
21 | Brake | Brake stopping distance | ≤10m(32.81ft) |
22 | Brake mode | Disc brake | |
23 | Tires | Tire Size | Front:26inch Rear:26inch |
24 | Tire materials | Pneumatic tire | |
25 | Charger | Input voltage | 100-240V |
26 | Output voltage | 54.6V | |
27 | Output current | 2.8A | |
28 | Rider | Max Load | 150kg(330.69lbs) |
29 | Recommended age | >14 years old | |
30 | Required height | 155-200cm(5.09-6.56ft) | |
31 | Features | Brake light | Normally on |
32 | Ride Mode | Zero start (rear drive) | |
33 | Certification | Bicycle: CPSC 16 CFR 1512, UL2849 Test Report, 16 CFR1303&Prop 65 Test Report; Battery:UL 2271; Battery Charger:UL 1012; Motor control:UL 2849; | |
34 | Packing | manner of packing | 1pc/ctn |
35 | G.W. | 45.5kg(100.31lbs) | |
36 | LxWxH | 1561*375*854mm(61.46*14.76*33.62inch) | |
37 | UPC Code | OKAI EB50 US BLUE 48V | 810100340056 |
38 | OKAI EB50 US Black 48V | 608938951908 | |
39 | Description | The power and ruggedness of the OKAI Ranger lies beneath its elegant, clean line exterior. A long-range interchangeable battery, large integrated full-color touchscreen LCD display, 26" x 4" fat tires, front suspension, powerful 750-watt motor, customizable ambient lighting and app connectivity will take you anywhere you want to go. | |

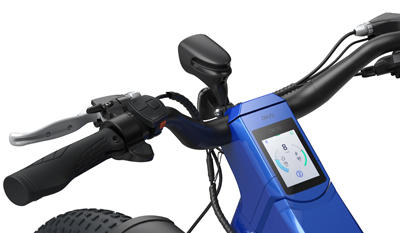

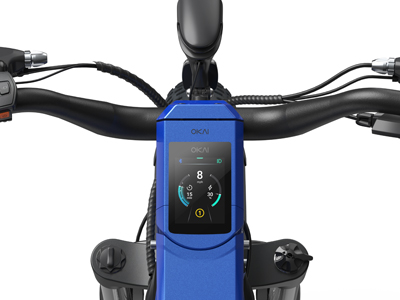

40 | Key Selling Points | 1. Exceptional design & riding performance with BAFANG rear hub motor (48V 750W nominal power and 1000W peak power) and 4” fat tires 2. Customizable ambience lighting on the side 3. LCD touchscreen integrated into the handlebar and connected to smart-control app |
