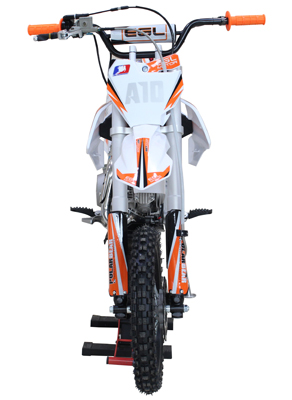

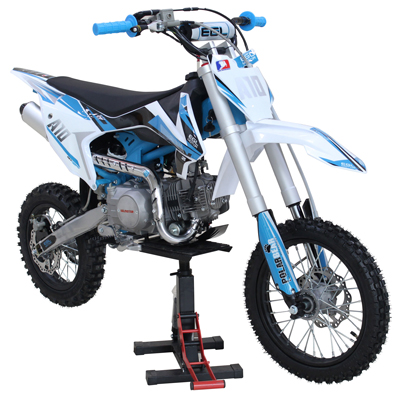

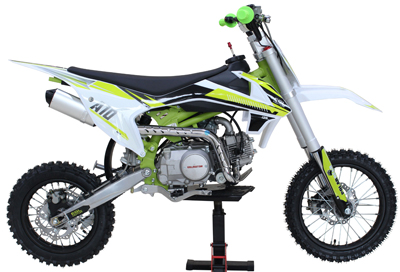

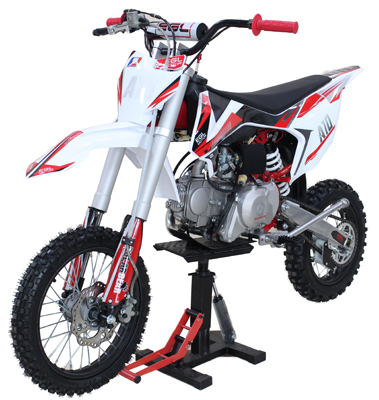

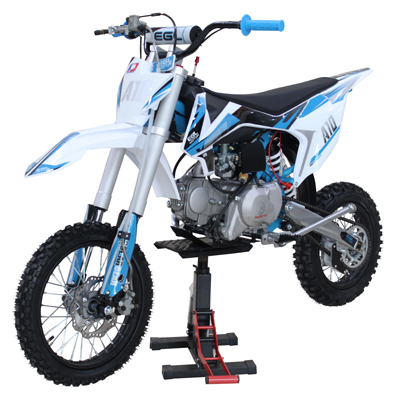

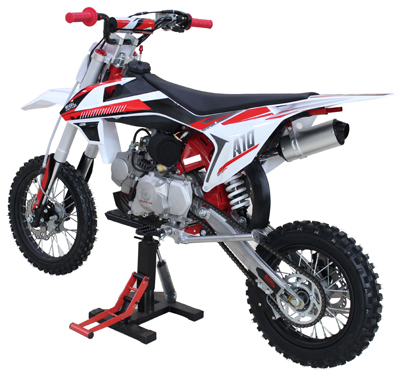

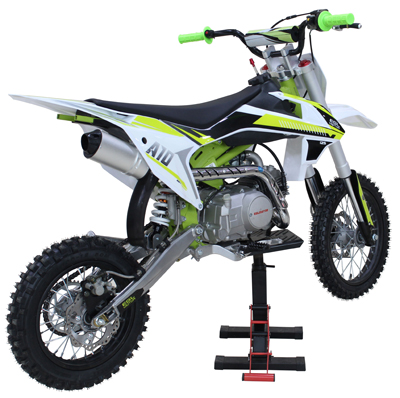

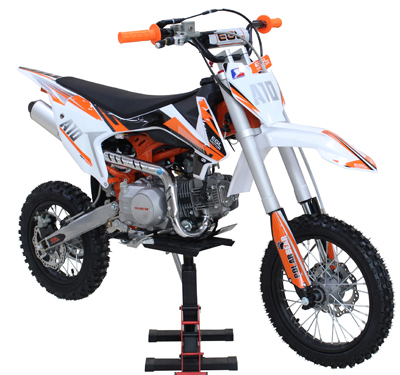

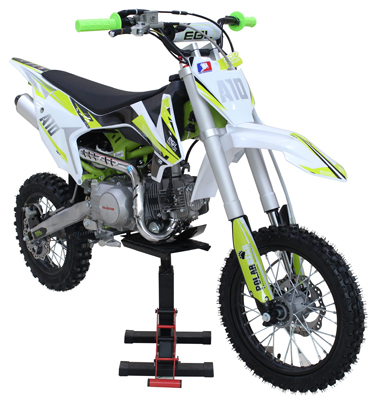

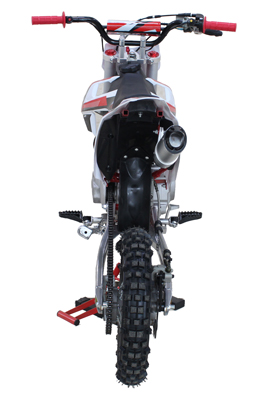

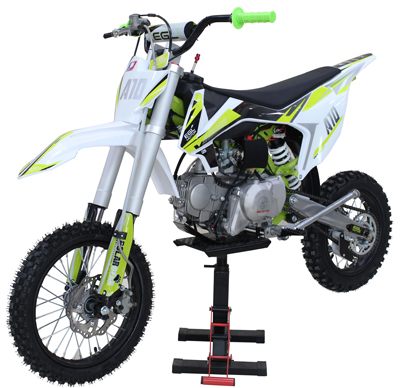

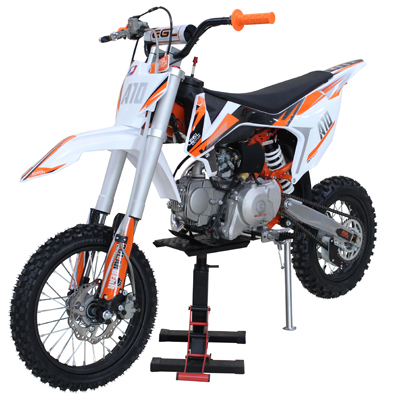

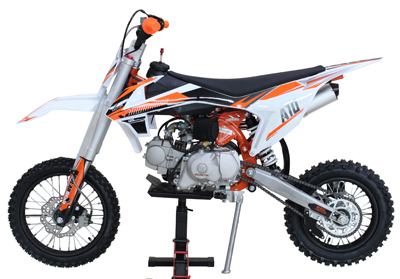

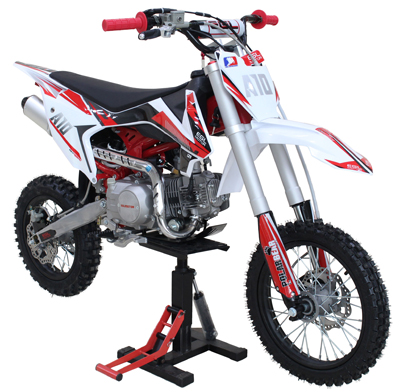

A-09

(A10-FA)

Engine : 125cc, 4 stroke, Single Cylinder

Transmission :  Fully Automatic

Cooling :  Oil-Cooled

Ignition System : CDI

Starting System : Electric Start

Battery: 12V,4Ah

Final Drive : Chain Drive

F/Brake : Hydraulic Disc (Hand)

R/Brake : Hydraulic Disc (Foot)

Fuel Capacity :4.5L

Max Speed : 35-45 MPH

Front Tire : 60/100-14 Knobby Tire

Rear Tire: 80/100-12 Knobby Tire

Front Suspension: L=735mm up side down, not adjustable

Rear Suspension: L=280mm,  not adjustable

Max Power[Kw/r/m]: (6.3(1±10%))/(7500(1±5%))

Max Torque[N.m/r/m]: 8.8(1±10%))/(5500(1±5%))

Compression Ratio: 9.0:1

Seat Height: 31.1"

Ground Clearance: 11.8"

Max Load: 185 LBS

Weight: G.W.166LBS, N.W.144LBS

Bore & Stroke: 54X54

Wheelbase: 1220±3mm

Carton Dimensions: L*W*H*: 59"x17"x31"

Color: Blue/Red/Orange/ Green
