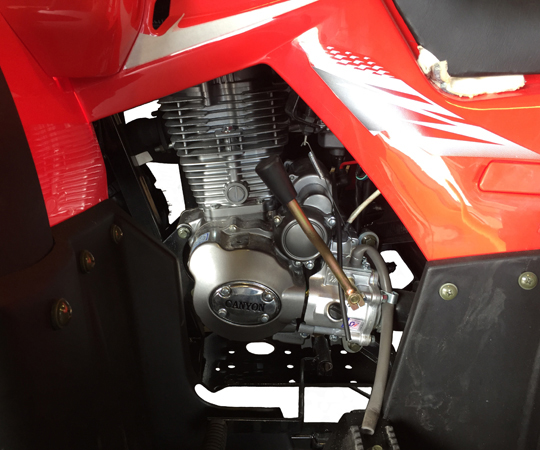

ENGINE TYPE:  4-STROKE

DISPLACEMENT: 230CC

COOLING: AIR COLLING

IGNITION TYPE: C.D.I

NUMBER OF CYLINDER: 1

COMPRESSION RATIO: 9.2:1

BORE AND STROKE: 67X65

MAX POWER[KW/R/M]: 11.5/7000

MAX TORQUE[N.M/R/M]: 16.5/5500

STARTING: ELECTRIC

GAS TANK CAPACITY [L]: 12.5

ENGINE OIL CAPACITY[L]: 1.2

LIGHTING: YES

TOP SPEED [KPH]: 75

BATTERY TYPE: 12V 14AH

ANSMISSION TYPE: AUTOMATIC CLUTCH

DRIVE SYSTEM TYPE: CHAFT DRIVE

GEARING: 5-SPEED+N+REVERSE

TIRES: FRONT SIZE(' 23X7-10 '), REAR SIZE(' 21X10-10 ')

SUSPENSION: FRONT TYPE(MCPHERSON), REAR (SWING ARM)

BRAKING: FRONT BRAKE (HYDRAULIC DISC), REAR BRAKE (DRUM)

PRODUCT DIMENSIONS: LENGTH [1940 MM], WIDTH [1050 MM] & HEIGHT [1150 MM]

DRY WEIGHT  [245 KG], SEAT HEIGHT [820 MM], WHEELBASE [1150 MM]

WEIGHT CAPACITY [160 KG]

GROUND CLEARANCE [220 MM]

CARTON DIMENSIONS: LENGTH[1970 MM], WIDTH[1150 MM] & HEIGHT[860 MM]

PACKING WEIGHT [195 KG]

CUBIC METER [1.95 M3]

AVAILABLE COLORS: BLACK, BLUE, GREEN & RED
